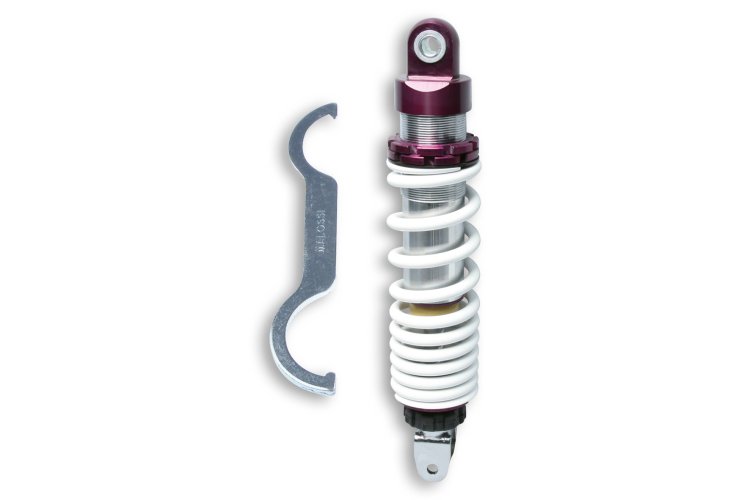

SHOCK ABSORBER RS24 It is a regenerable oleo gear with bi-lamination piston and baffle plate compensation. ø 36-mm piston with two independent lamellar packs, one in extension and one in compression; lamellar system made of harmonic steel with leaf spring configuration; LUBRIFLON-PTFE B70 piston runner guide (bronze-loaded modified compound); Sliding on GUIDA DU guide bushing (a composite material obtained by sintering a layer of spheroidal bronze on a mild steel strap properly treated, followed by impregnation and coating with a mixture of PTFE + PB); Polyester resin SEALTHANE grade 9345 scraper ring 38NCD4 alloy steel shock absorber rod ø 14 mm, hardened and tempered with hard chrome deposit thickness 25/30 microns (superficial hardness of the untreated shaft HRC 55/60) Code Inter-axis mm 46 7588 rear 267 46 7589 rear 300 46 7591 rear 245 46 7900 front 205 46 8308 rear 294 46 8607 rear 360 46 8611 rear 290 46 9031 pair rear 294 + front 205 4611641 rear 410 4612962 rear 290 4613055 rear 307 4613598 rear 316 4614137 front 232 4614615 front 257 4614618 rear 336 4615127 rear 343 4617065 rear 360 4617076 front 275
